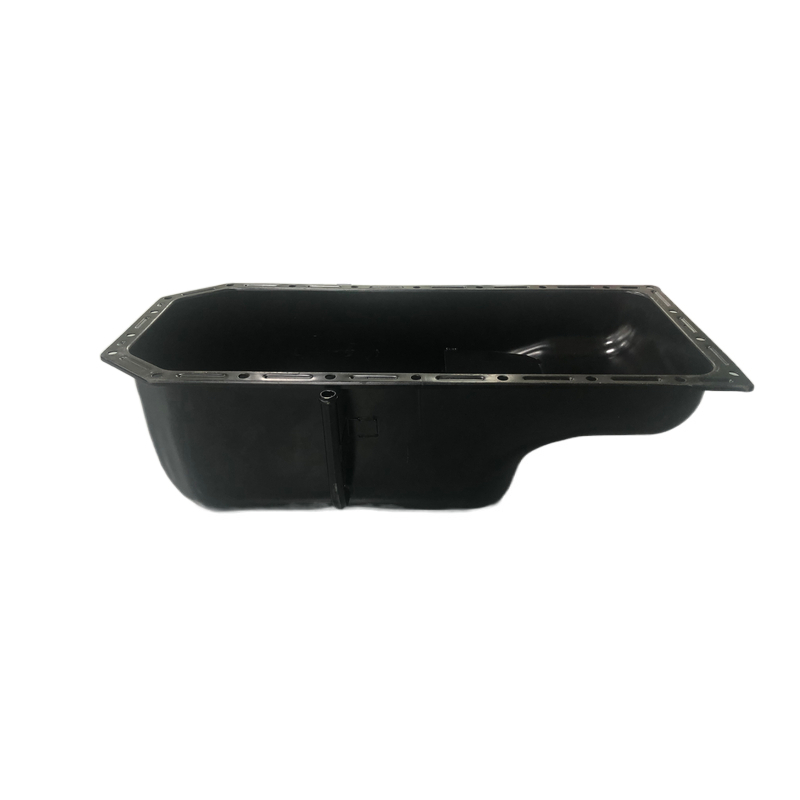

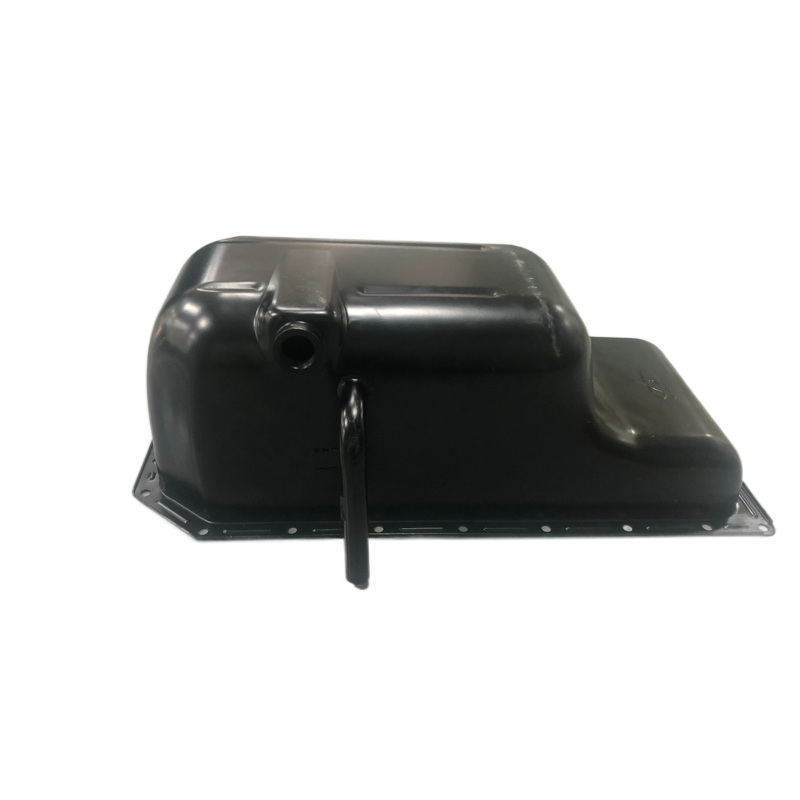

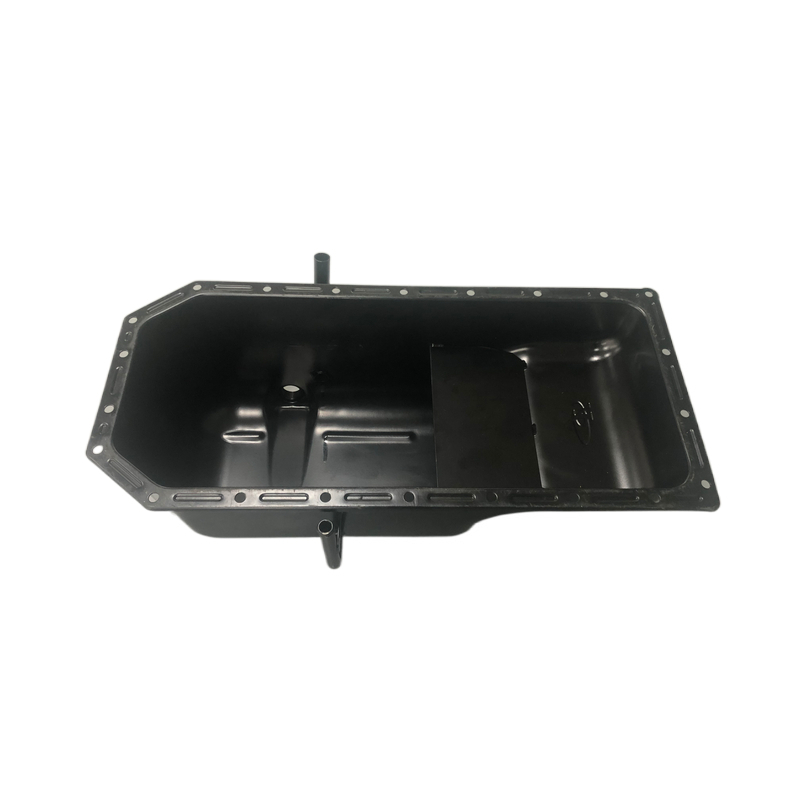

Metal deep drawn process as main process to applied to the fabrication of oil pan for engine.This deep drawing process pays attention to precision and superb processing technology,which is combined to the process step of hydroforming,punching and welding to finish.
When considering deep drawn stamping for your manufacturing needs, it is important to be aware of the following:
· Reduced Material Waste: Deep drawn stamping uses a greater amount of the base material than other metal forming processes for significantly reduced material waste.
· Measurement Is Critical: Not only is it important to ensure that the die dimensions are accurate, it is equally essential to consider the material thickness and desired measurements. Incorrect measurements can result in thin walls and inaccurate dimensions.
· Draft and Tapering: Due to the fundamental manufacturing process of deep drawn stamping, some draft and tapering of the top of the component is unavoidable. This should be taken into consideration during the initial design phase.
· Varied Material Thickness: Deep drawn components will typically have varying thickness with thinner walls and a thicker base. This can be mitigated by tooling after the drawing process is completed.
· Deep drawn components are also created in one piece, thereby reducing the need for additional assembly. This has the added benefit of seamless construction, which is ideal for waterproof or airtight applications.
· Deep drawn stamping is highly versatile and can be used to create complex, detailed components with an exceptional degree of accuracy and repeatability. What’s more, deep drawn parts are exceptionally strong due to the extreme amount of compression exerted on the metal during the forming process. The fundamental structure of deep drawn metals is often highly compressed into a very hard crystalline structure.
Description | Metal deep drawn housing,sheet hydroforming tank, metal deep drawn case,metal deep drawn part |
Machinery | 1000T pnumatic press machine |
Material | Steel |
Processes | Compound die stamping |
Tolerance | 0.10mm |
Type of welding | Robot laser welding |
Surface finish | welding marks removal,grinding, brushing,powder coating |
Environment friendly | all materials and processes are Rohs conformed. |
Quality system | ISO9001 |
Hot tags:Sheet metal stamping deep drawn for oil pan, Steel deep drawn, metal stamping deep drawn, metal deep drawn, China, manufacturers, factory, Customized, suppliers
