Sheet metal stamping deep drawn process is widely use in the manufacturing of the component for the industry of Appliances, Automotive, Aviation, Communications, Control Instruments, Electronics,Machining Equipment,Medical Equipment and so on.
Deep drawing – also referred to as deep drawn or deep draw stamping – is a form of metal stamping that generates seamless round enclosures (i.e., cases) that are at least as high (or taller) as they are wide. Examples of typical deep drawn components include cans, housings, and other containers. They are particularly well-suited for use in demanding environments where reliability and tight tolerances are critical, such as in the electrical and electronic technology industries.
The deep drawn stamping process employs the use of radial tension-tangential pressure to form metal into the desired shape and size. A series of specialized dies and punches decreases the diameter and increases the length of the blank – i.e., the flat metal disc – according to the part design. The resulting piece is cylindrical or hollow-shaped with straight, tapered, or combination sides.
A standard deep drawn stamping operation includes the following steps:
· Designing the part. Every stamping operation begins with a design for the intended end product. Once the design is complete, the manufacturer can determine what dies and punches are required to achieve the shape and size of the component. Some factors to keep in mind include the dimensions of the part, the customer’s requirements, and which methods to employ.
· Determining the material. Based on the above, they then determine which material suits the part and production specifications. Typical materials used in deep drawn stamping operations include aluminum, brass, copper, stainless steel and low carbon steel.
· Performing the stamping operation. Once the part design and material are set, the manufacturer can move on to the stamping phase. Using the press and tooling (i.e., punches and dies) they identified during the design phase, they gradually form the blank into the part. Each station – i.e., draw or reduction – decreases the diameter and increases the height of the material, with a single part generally taking five or more stations to achieve the desired shape and size. The number of draws or reduction required depends on the part design and the type and thickness of the stamping material.
Description | Metal deep drawn housing,sheet hydroforming tank, metal deep drawn case,metal deep drawn part |
Machinery | 100-1000T pnum atic press machine |
Material | Stainless steel,aluminum,steel,brass |
Processes | Compound die ,progressive die, |
Tolerance | 0.10mm |
Surface finish | Brushing,polishing,powder coating,anodizing |
Environment friendly | all materials and processes are Rohs conformed. |
Quality system | ISO9001 |

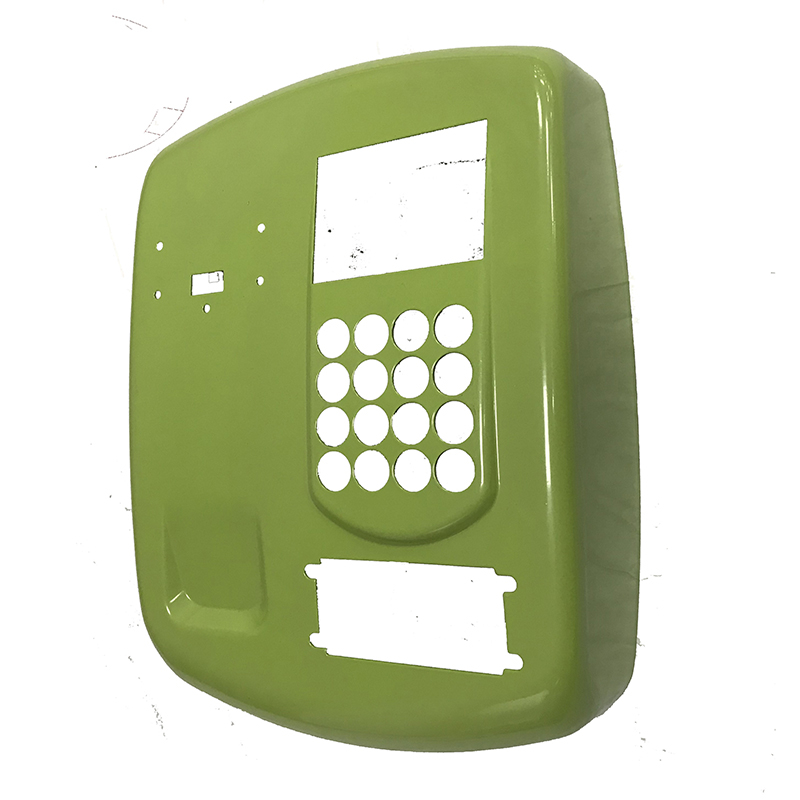

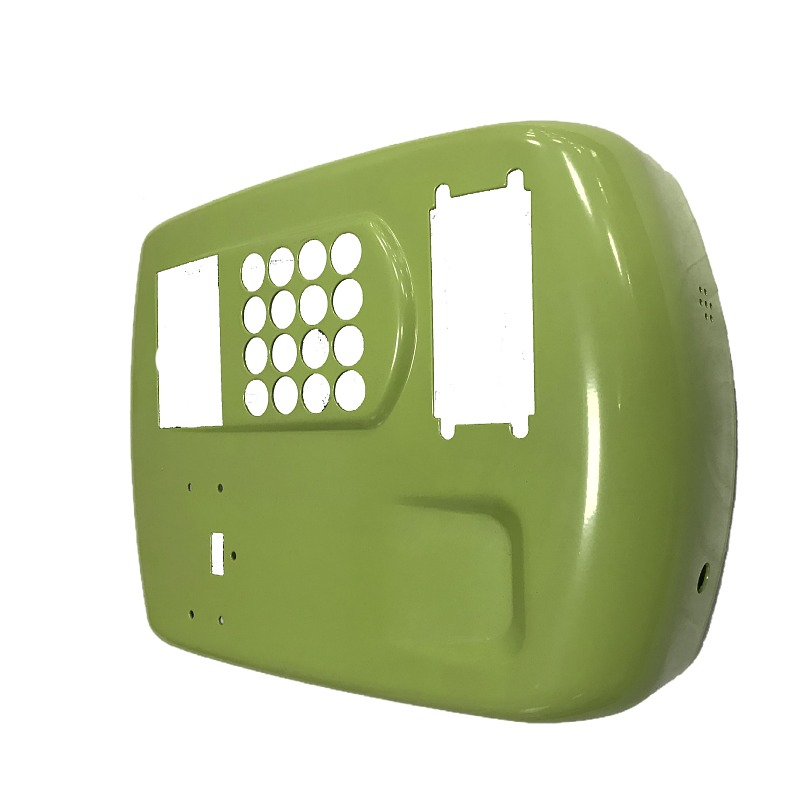

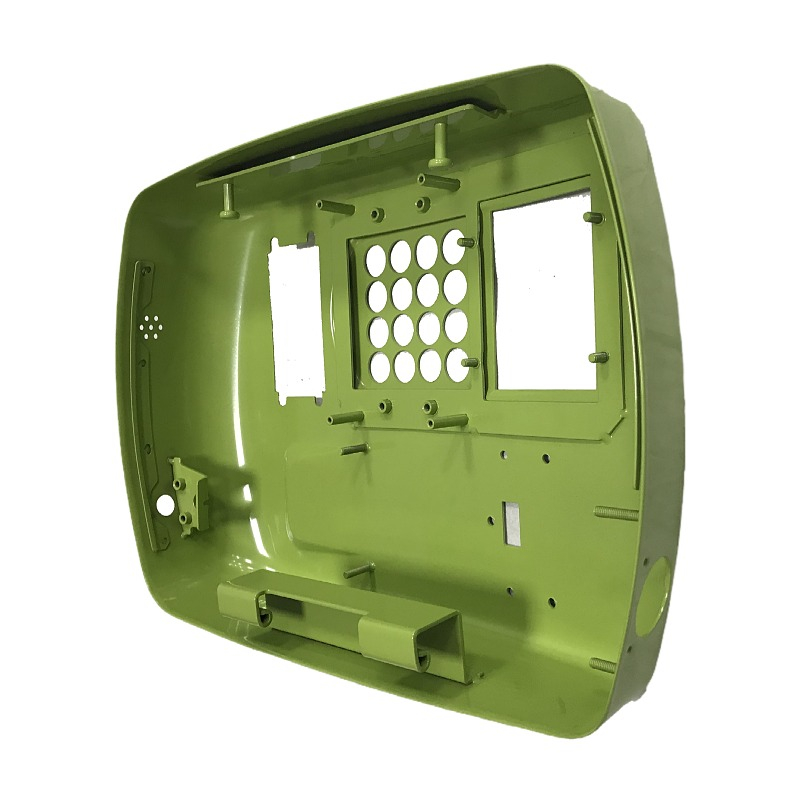

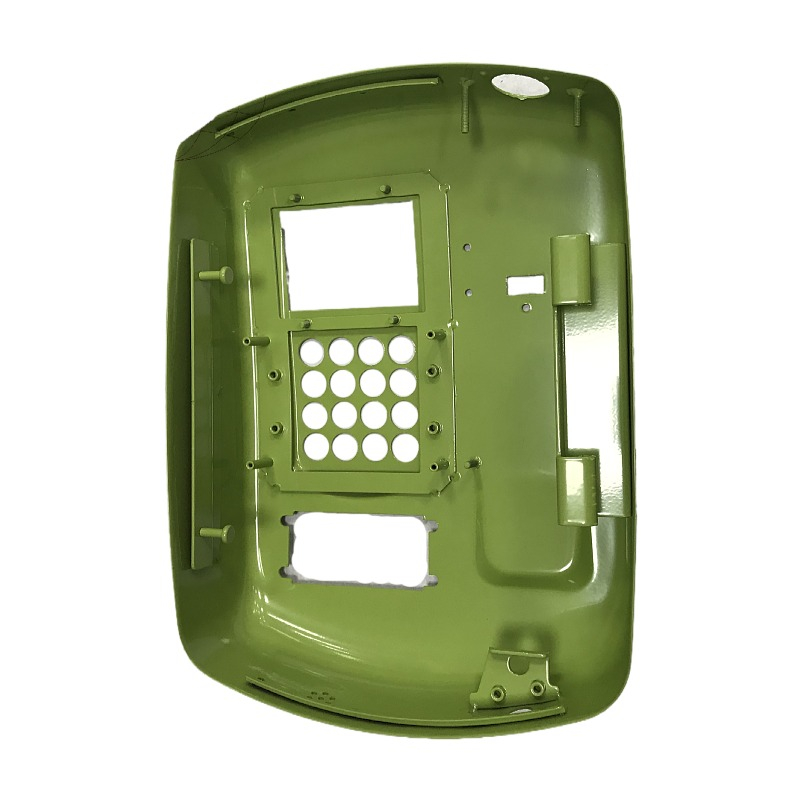

Hot tags: steel stamping deep drawn shell for communication, metal deep drawn shell, aluminum deep drawing shell, steel deep drawn part, China, manufacturers, factory, Customized, suppliers
